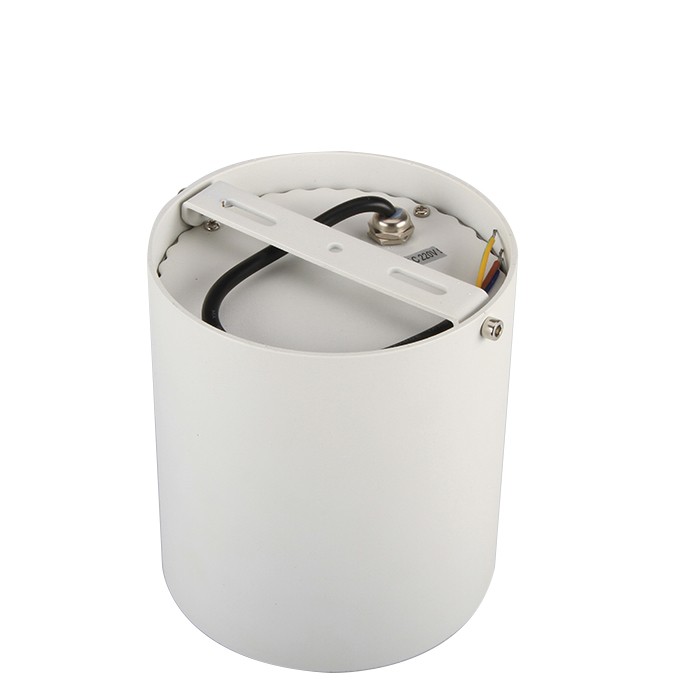

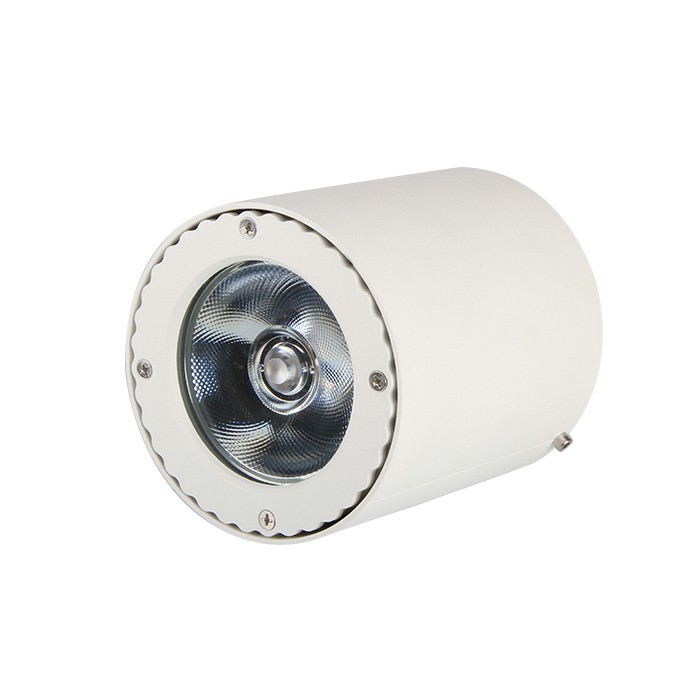

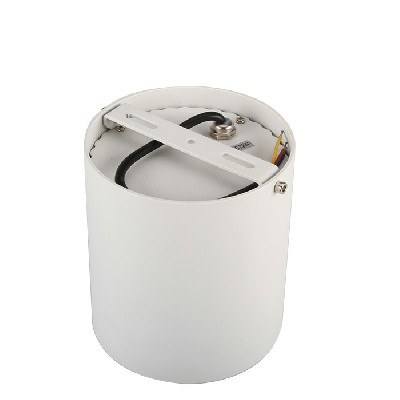

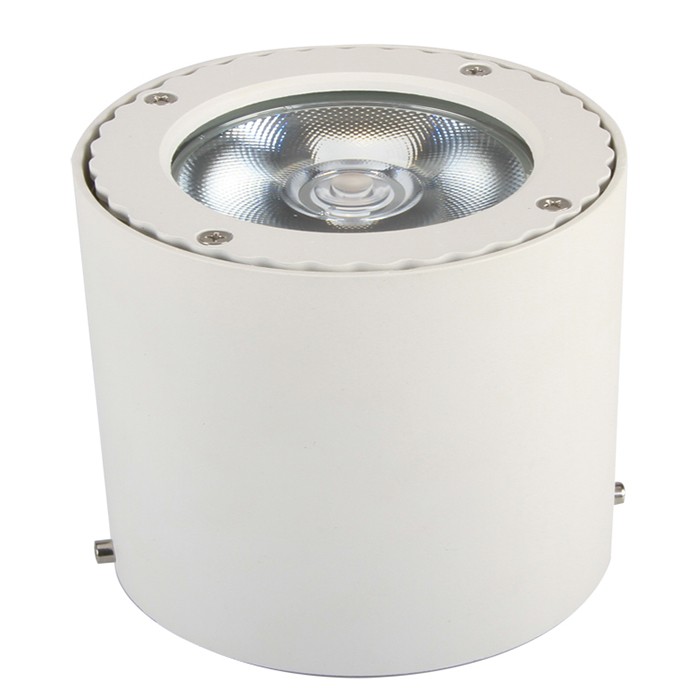

LED tube lamp GMFSTD003
2019-05-23 1048
Place of Origin | Zhongshan | Model | GMFSTD003 | Specifications | Φ135*H150MM |
| brand | BASUN/Wide Beauty | input voltage | AC85-265V | Output current | 280mA ±5% |
| power | 20W | light source | San an | colour | W/WW |
Protection level | IP65 | Luminous angle | 12°24°36° | Application scope | Products are used in bridges, hotels, buildings, parks, squares and lakeside parks, etc. |
Remarks | Waterproof lamp | IES | New time | 2019.4 |
Place of Origin | Zhongshan | Model | GMFSTD001 | Specifications | Φ105*H150MM |
| brand | BASUN/Wide Beauty | input voltage | AC85-265V | Output current | 280mA ±5% |
| power | 10W | light source | San an | colour | W/WW |
Protection level | IP65 | Luminous angle | 12°24°36° | Application scope | Products are used in bridges, hotels, buildings, parks, squares and lakeside parks, etc. |
| Remarks | Waterproof lamp | IES | New time | 2019.4 |
Place of Origin | Zhongshan | Model | GMFSTD002 | Specifications | Φ105*H150MM |
| brand | BASUN/Wide Beauty | input voltage | AC85-265V | Output current | 280mA ±5% |
| power | 6*2W | light source | Crystal element | colour | W/WW |
Protection level | IP65 | Luminous angle | 25°45°60° | Application scope | Products are used in bridges, hotels, buildings, parks, squares and lakeside parks, etc. |
| Remarks | Waterproof lamp | IES | New time | 2019.4 |
Application case
Real Estate Building Project
Hotel Clubhouse Project
Municipal State-owned Enterprise Project
Garden Park Project
-
05-09
What are the key aspects of wall washing lamp operation
Led wall washing lampBecause the volume is relatively large and the heat dissipation is relatively good, the difficulty in planning is also greatly reduced. However, in practical use, the constant c
-
07-17
What should we pay attention to when operating high-power LED wall washing lamp
In the process of using the equipment, it is necessary to ensure that these equipment have a strong ability to resist nature, so that our equipment can have a good application effect. In the applicati
